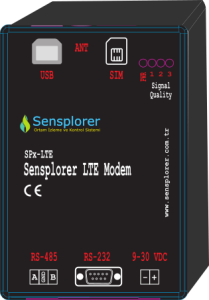

Sensplorer 4G/LTE Modem Module

(SPx-LTE)

Product Description Technical Specifications Downloadable Documents

The Sensplorer 4G/LTE Modem Module is used both to connect to 4.5G mobile data network and to send text message and call the number. It is used to keep the users informed of current status of all sensors.

Sensors are associated with Sensplorer user group. In addition to associating sensors with groups, it is defined whether email, SMS and calls are made when an event occurs, whether the status of the transition to normal is notified or not, and whether these notifications are made during and outside of the working hours.
In case of sensor status changes the user in group will receive the text messages and phone call if mobile number defined.
Sensplorer X/M/S Base module decides if the primary network connection (LAN) is down it automatically switch to assigned 4.5G mobile data network to send and receive.When the primary connection available, it recovers back.
Primary connection can be defined LAN or 4.5G by the Sensplorer admin. Module should be powered 12 VDC externally

• Sensplorer monitors sensors and parameters if measured value is in between user defined limits.
• Sensors assigned to user groups which users defined is in.

• Any exceeds in sensor values causes a message to send to the assigned people if GSM number defined
• Sensplorer GSM Modem Module sends text messages to mobile phone of the users assigned to the relevant sensor when any change in sensor status
